• vi
  • OM55N-DS

    • Product code: LH55OMNDSGBXZA
    • The firm: Samsung
    • Size: 55"
    • Resolution: 1920 x 1080 (Full HD)
    • Screen brightness: 1000 nits / 500 nits3000 / 1000 nit
    • Screen border: 22.8 mm

    Contact:

    Present bright content on a dual-display

    Dual-display, double the impact. The display is designed to enhance multiple environments, maintain picture integrity on the window-facing side even in direct sunlight and deliver information in-store for a comprehensive customer engagement.

    Present bright content on a dual-display

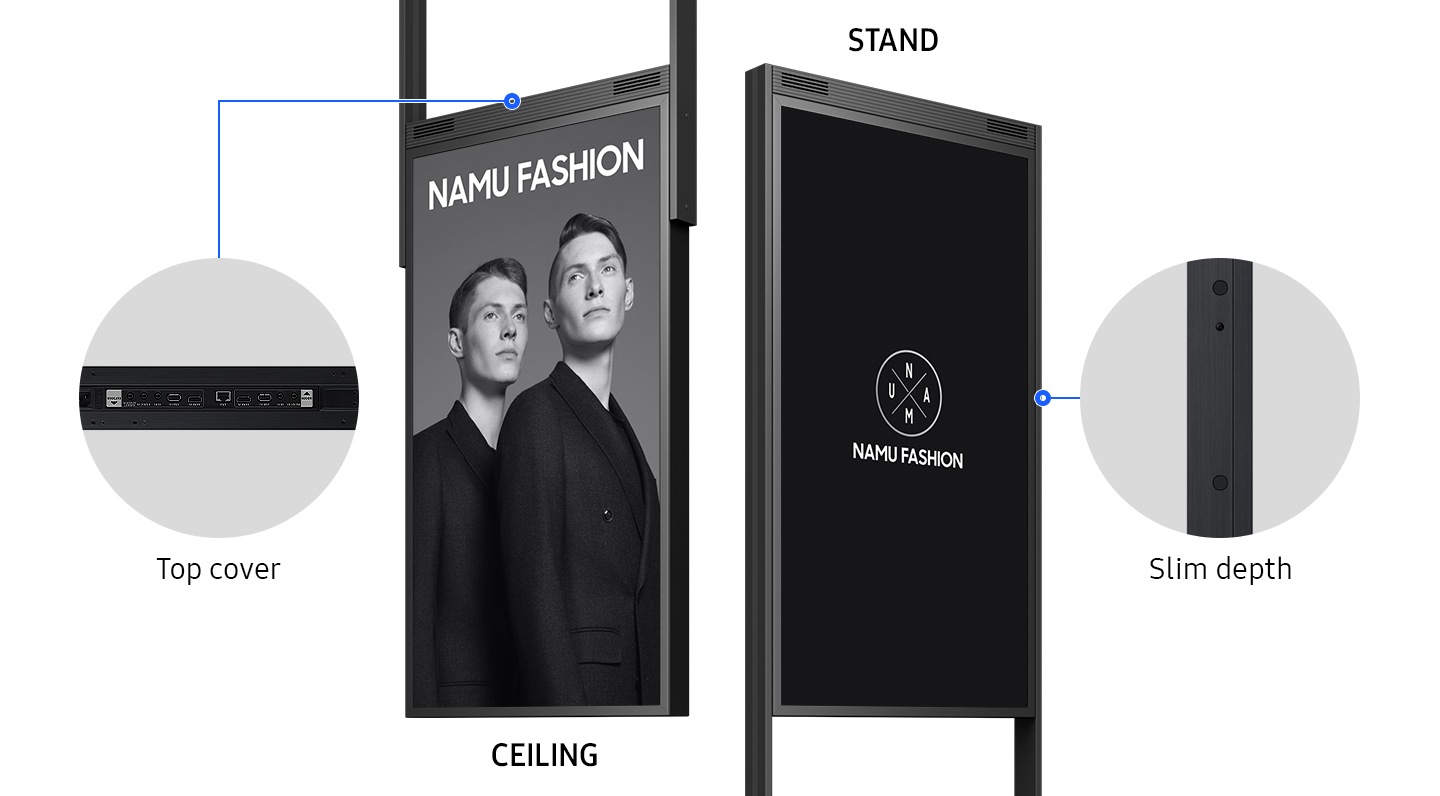

    Modernize space with flexible design

    Choose the position of your display with multiple installation options, complementing any environment.

    Modernize space with flexible design

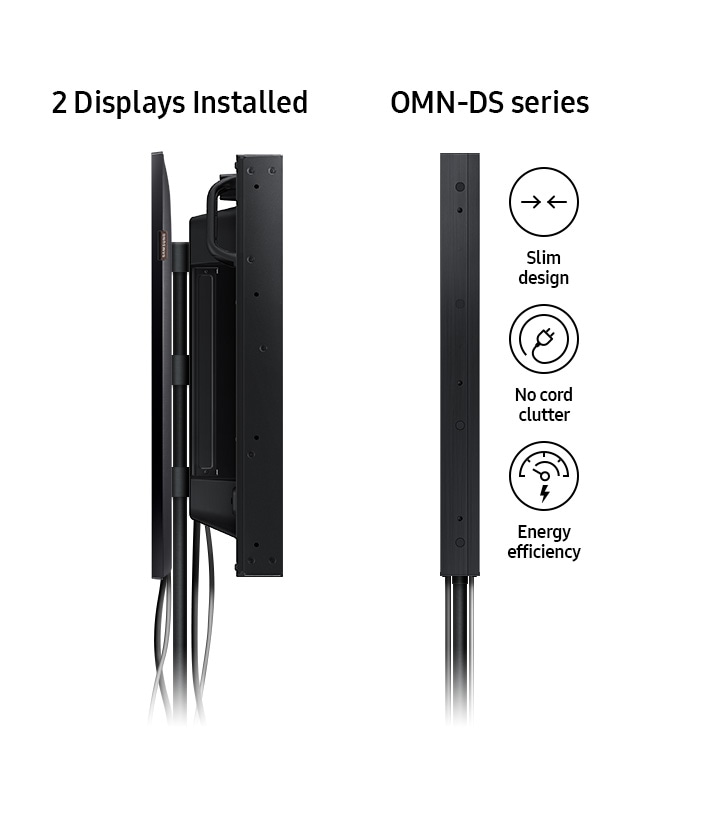

    Maximize operational efficiency

    A double-sided display allows content to be shown on both sides. It is powered by just one electric power cord and one LAN cable for minimal clutter and maximized energy efficiency.

    Maximize operational efficiency

    Streamline content management

    The OMN-DS series’ embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the display’s overall performance. This allows for easy content management and ensures seamless content transition and playback.

    Streamline content management

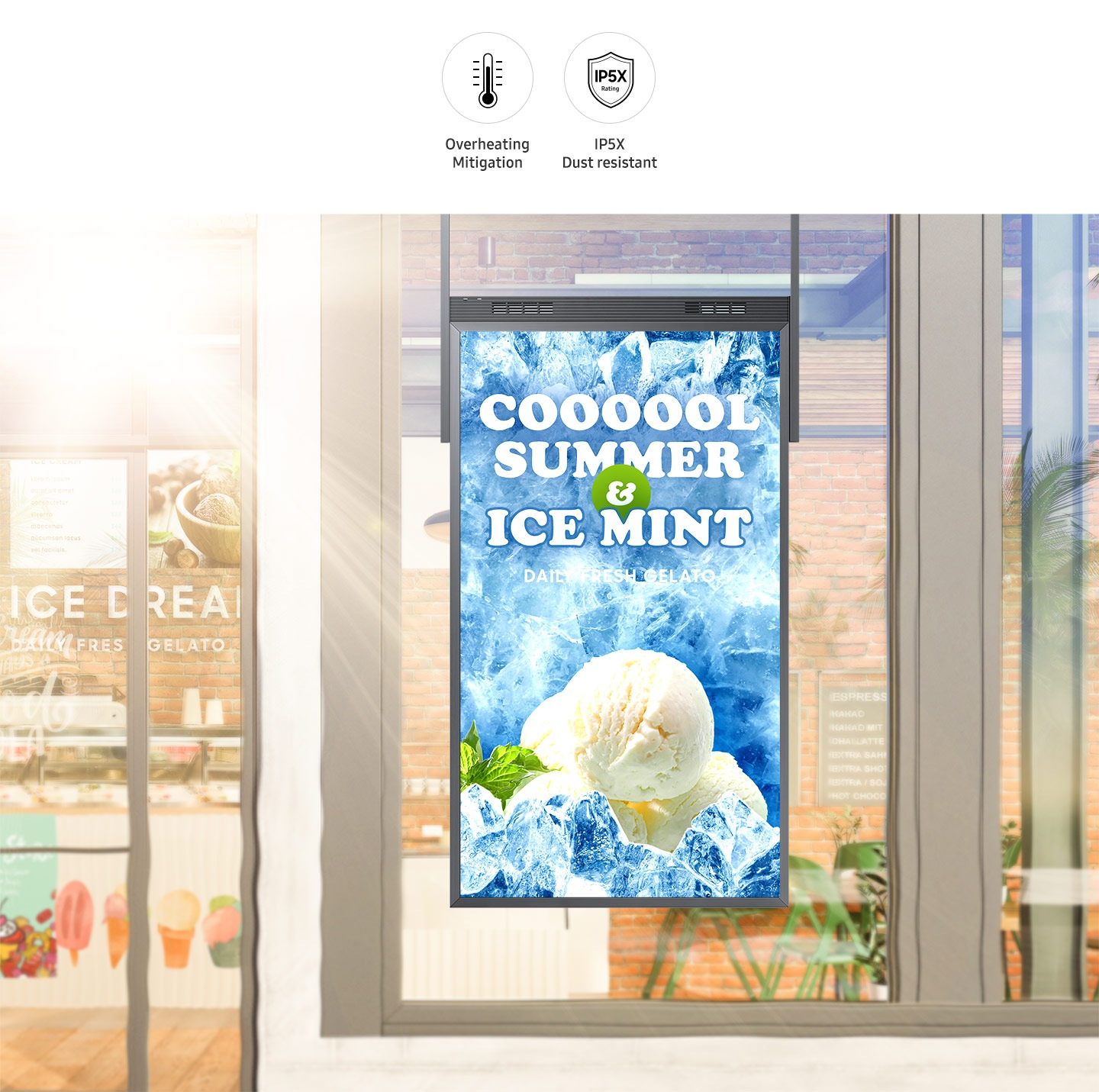

    Durable Performance

    With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMN-DS series continuously provides robust durability.

    Durable Performance

    * IP5x validation ensures satisfactory operation even with a certain level of dust inside the product. However, product operation is not guaranteed when exposed to particular types of dust, such as metal dust.*

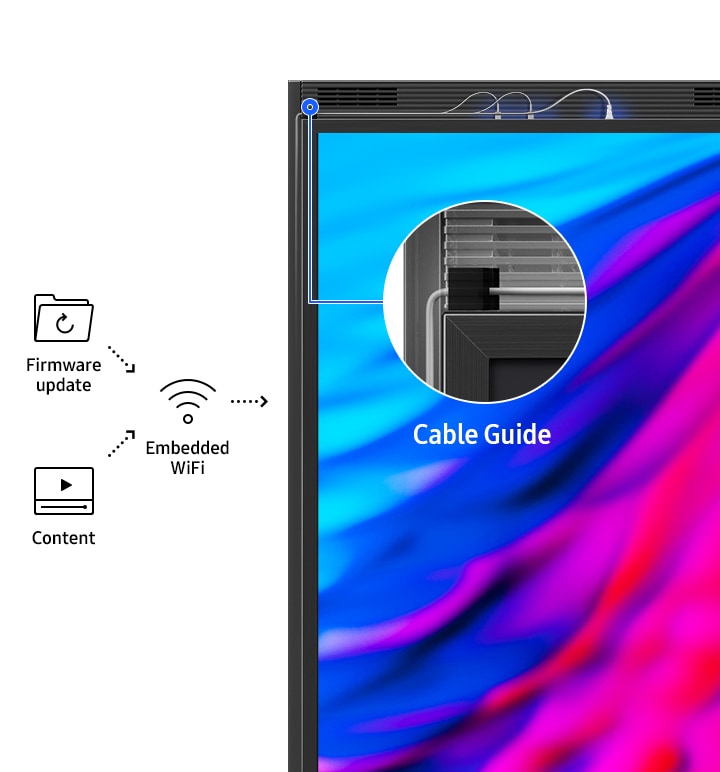

    Clean Cable Configuration

    Connectivity cover keeps connections clean and organized. Embedded Wi-Fi also allows for updates without the need for any additional messy cables.

    Clean Cable Configuration

    Display

    • Diagonal Size55″
    • Panel TypeVA
    • Resolution1,920 x 1,080
    • Pixel Pitch (HxV)0.63 x 0.63 mm
    • Brightness (Typ)Outdoor 3,000/Indoor 1,000 nit
    • Contrast Ratio6,000 : 1
    • Viewing Angle (H/V)178/178
    • Response Time6 ms (Outdoor) / 8 ms (Indoor)
    • Color GamutNTSC 72%
    • Glass Haze0 %
    • H-Scanning Frequency15 ~ 135 kHz (HDMI)
    • Maximum Pixel Frequency594 MHz (HDMI)
    • V-Scanning Frequency24 ~ 75 Hz (HDMI)
    • Contrast Ratio (Dynamic)Mega

    Connectivity

    • HDMI In2
    • Version of HDMI2
    • Version of HDCP2.2
    • USB2
    • IR InYes
    • HDBaseT OutNo
    • Audio InNo
    • Power OutNo
    • RS232 InYes
    • RJ45 InYes
    • WiFiYes

    Power

    • Power SupplyAC 100 – 240 V 50/60 Hz
    • Power Consumption (On Mode)500 W
    • Power Consumption (Sleep Mode)0.5 W

    Dimension

    • Set Dimension (WxHxD)726.8 x 1299 x 69.5 mm
    • Package Dimension (WxHxD)940 x 1466 x 367 mm

    Weight

    • Set Weight42 kg
    • Package Weight52 kg

    Operation Conditions

    • Temperature0 ~ 40 ℃
    • Humidity10 ~ 80%, non-condensing

    Mechanical Specification

    • Bezel Width22.8 mm

    General Feature

    • External Memory SlotNo

    Optional Feature

    • Protection GlassNo

    SoC

    • OS VersionTizen 5.0
    • Flash Memory Size8 GB

    Certification and Compliance

    • EMCClass A
    • Safety60950-1
