  • J600

    • The firm: Jupiter
    • Resolution: 3840 x 2160 (4K UHD)
    • Input: 14 HDMI
    • Output: 5 HDMI

    Contact:

    Customizable medium to large wall processor

    • 4 video walls in a single chassis
    • Redundant CPU boards and PSU
    • 16ms latency

    J-Series Processor

    Easy and affordable video wall hardware

    • Resolutions up to 4K
    • Multiple walls in a single chassis

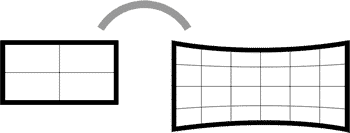

    • Warp and blend processing boards

    J-Series processors are an I/O appliance that can be used for any video wall application

    LightSpeed, the core technology that makes the J-Series products usable in any deployment

    J-Series are built and assembled in an ISO 9001:2015 production floor to uphold best-in-class standards.

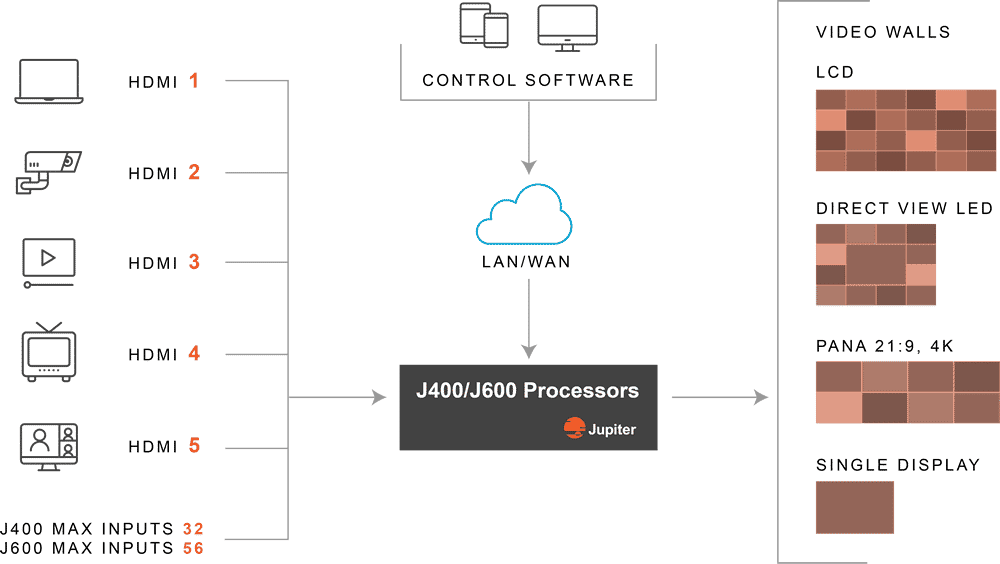

    Architecture of a J-Series Installation

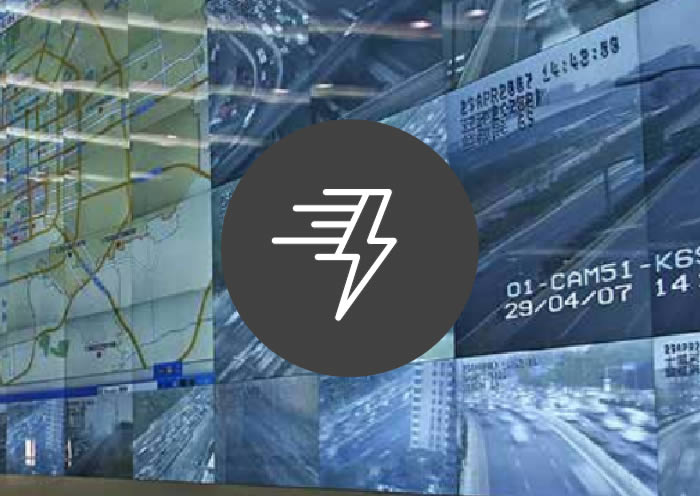

    LightSpeed Technology

    Jupiter’s latest technology for video processing is LightSpeed and it features ultra-fast capture, transfer, display, scaling and cropping of inputs. LightSpeed technology enables source-to-display frame transfer in less than 16ms, which is the fastest in the industry. Each display supports up to 4 windows of any source type, resolution or frame rate. This new technology also allows for 100% uptime while upgrading firmware, hot swapping or adding individual boards for 24/7 reliability. The Status Monitoring dashboard provides a real-time look into the hardware, making it easy to swap out any components for service or upgrades.

    Powerful Yet Simple

    Simply rename all the sources, configure the geometry of the video wall to match the displays and the system is done with the configuration. The web based configuration and management tool makes set up a snap.

    All J-Series products are HDCP-compatible, 24/7 display wall processors. Each model can power up to 4 different video walls with a single chassis, each wall having a unique geometry and resolution. Any type of source can be connected to create a beautiful and intelligent video wall. No operating system layer eliminates the worry of any virus, updates or software compatibility issues. The open API platorm allows for 3rd party control to touch panels and other management systems.

    SPECIFICATIONS

    • Form Factor 6RU
    • Power Consumption 460W
    • Max Input Slots 14
    • Max Input Channels 56 (HD) or 28 (4K)
    • Max Output Slots 5
    • Max Output Channels 20 (HD or 4K)
    • Redundant PSU Optional

    GENERAL TECHNOLOGY

    • Operating System None
    • Video Wall per chassis 4
    • Custom Resolution Output and Input
    • Color Space RGB 4:4:4
    • Bits per color 8
    • Source Switching <=20ms
    • Creating Window <=16ms
    • Layouts <=16ms
    • Operating Temperature 0°- 50°C (32°-112°F)
    • Operating Humidity <90% (Non-condensing)

    CPU BOARD

    • Configuration RJ45
    • API TCP or RS232

    INPUT BOARDS

    • HDCP 1.4 & 2.2
    • EDID Custom EDID management
    • HD DVI Input Board 4x channels of SL DVI-I Up to 1920x1200x60Hz
    • 3GSDI HDMI Input Board 4x channels of SDI Up to 1920x1200x60Hz
    • HD HDMI Input Board 4x channels of HDMI 1.3 Up to 1920x1200x60Hz
    • UHD30 HDMI Input Board 2x channels of HDMI 1.4 Up to 3840x2160x30Hz
    • UHD60 HDMI Input Board 1x channels of HDMI 1.4 Up to 3840x2160x60Hz

    OUTPUT BOARDS

    • Display Technology LCD, LED, Cube, Projectors, Custom Resolutions
    • HDCP 1.4 & 2.2
    • HD DVI Output Board 4x channels of SL DVI-I Up to 1920x1200x60Hz
    • 3GSDI HDMI Output Board 4x channels of SDI Up to 1920x1200x60Hz
    • HD HDMI Output Board 4x channels of HDMI 1.3 Up to 1920x1200x60Hz
    • UHD30 HDMI Output Board 4x channels of HDMI 1.4 Up to 3840x2160x30Hz
    • UHD60 HDMI Output Board 2x channels of HDMI 2.0 Up to 3840x2160x60Hz
