55VM5J-H

The firm: LG
Size: 55"
Resolution: 1920 x 1080 (Full HD)
Screen brightness: 500 nits
Screen border: 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L)

Contact:

55” 500 nits FHD Slim Bezel Video Wall

Brightness(Typ.) : 500 nit
Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
Depth : 86.9 mm
Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Artistic Immersion, Overwhelming Captivation

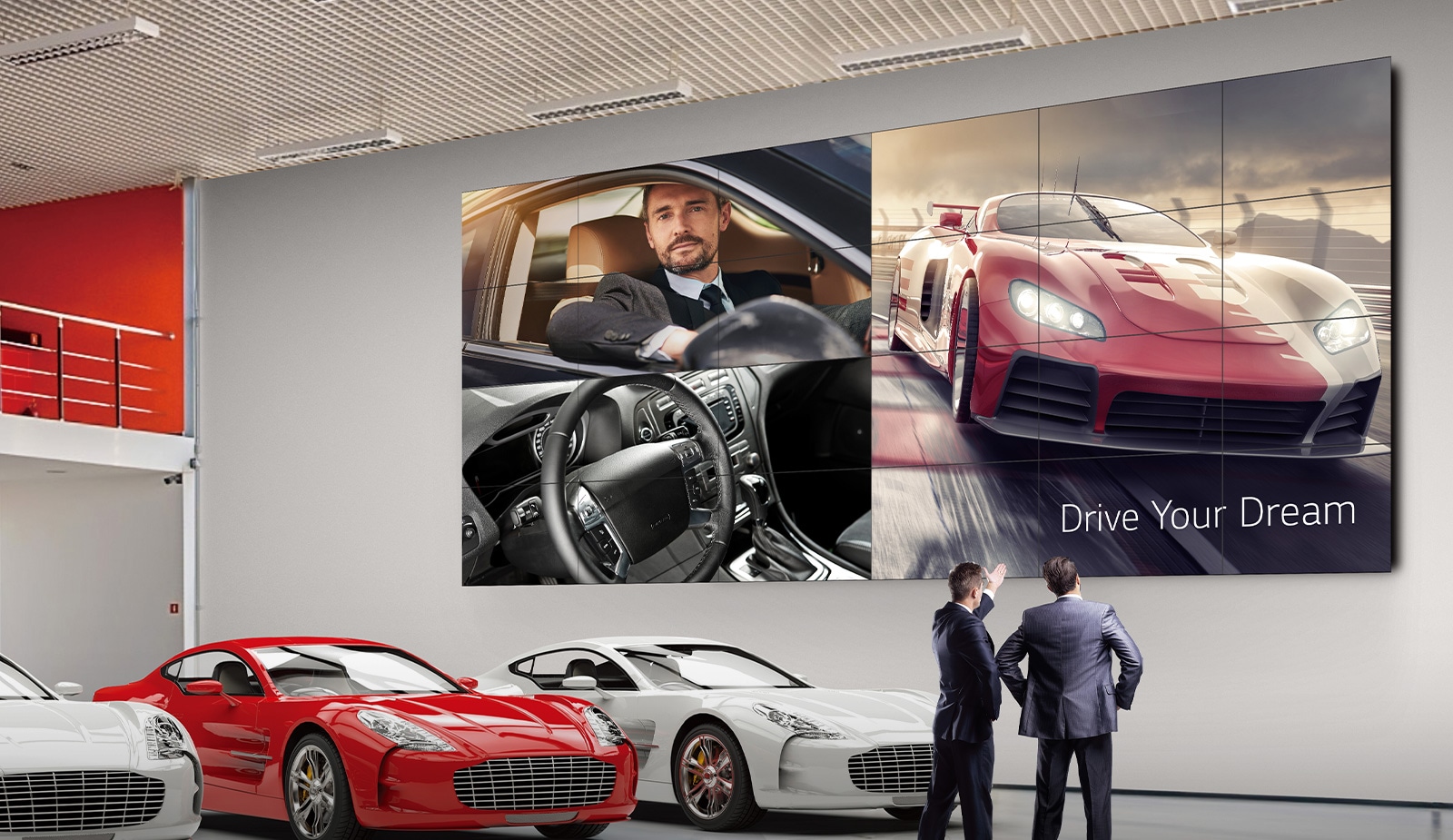

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

* All images in this web page are for illustrative purposes only.

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.

* The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

* The “LG Conventional” refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.

A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

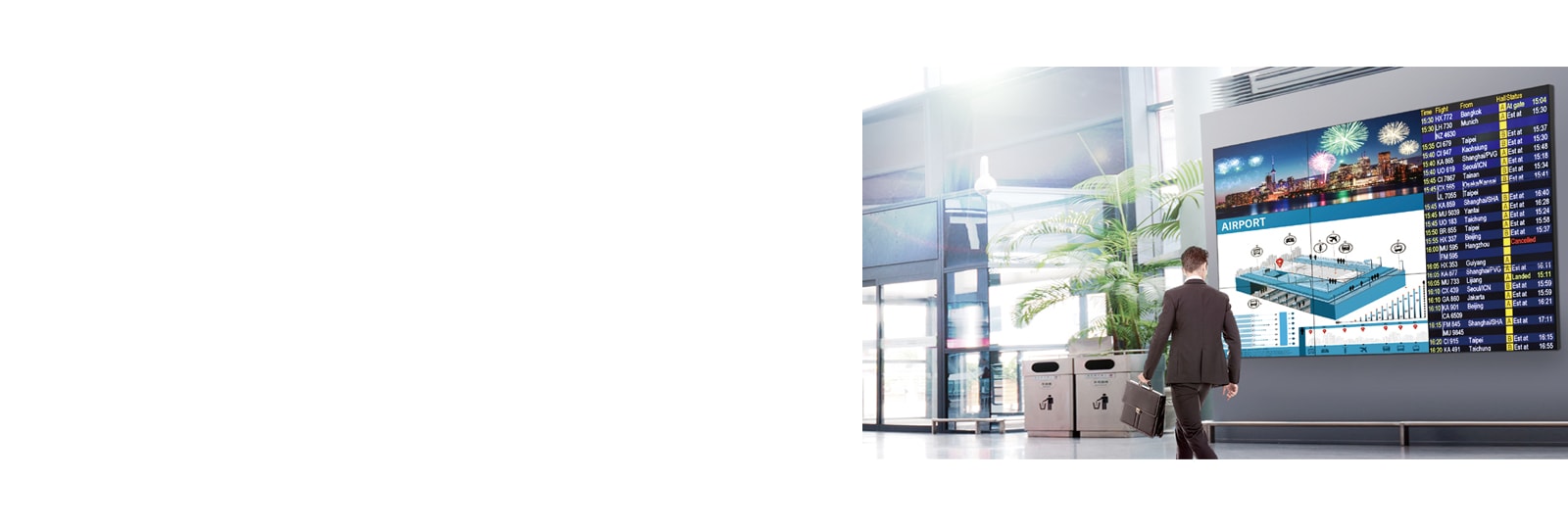

A man passes by while watching the screen and the screen displays vivid color from any angle.

Wider Viewing Angle

LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position.

VM5J-H can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

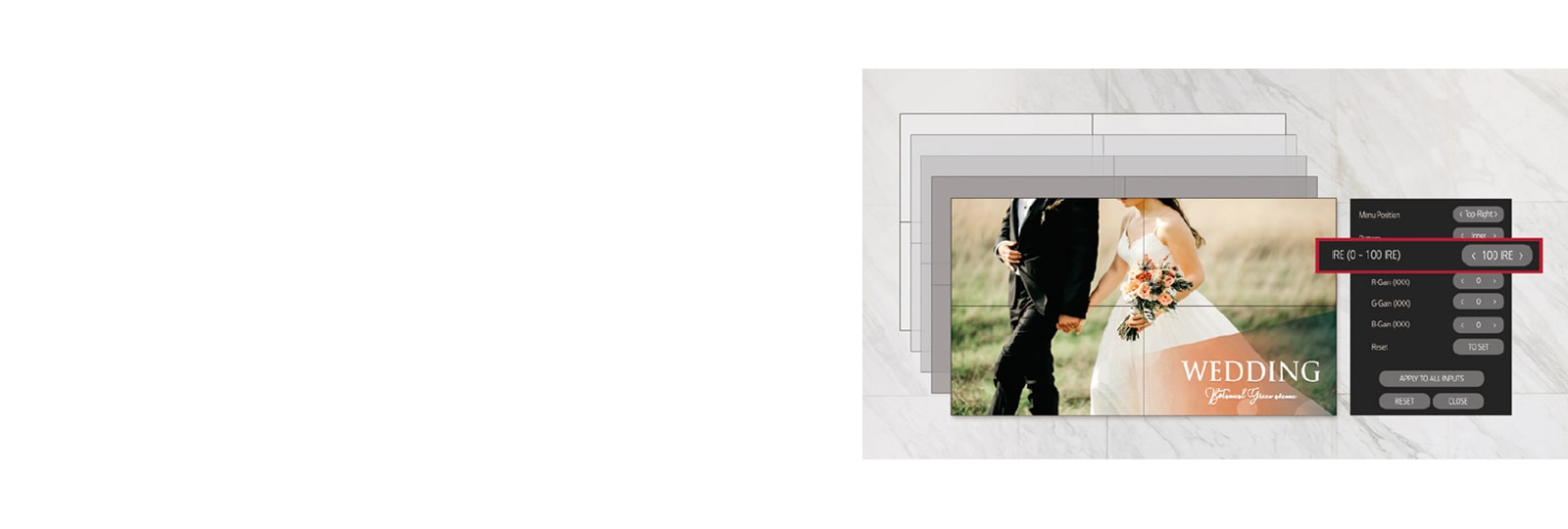

VM5J-H can be more accurately adjust white balance.

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.

* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)

One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.

* Supported protocols : RTSP, RTP, HLS, UDP Multicast

Several tasks could be accomplished simultaneously with the intuitive GUI.

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.

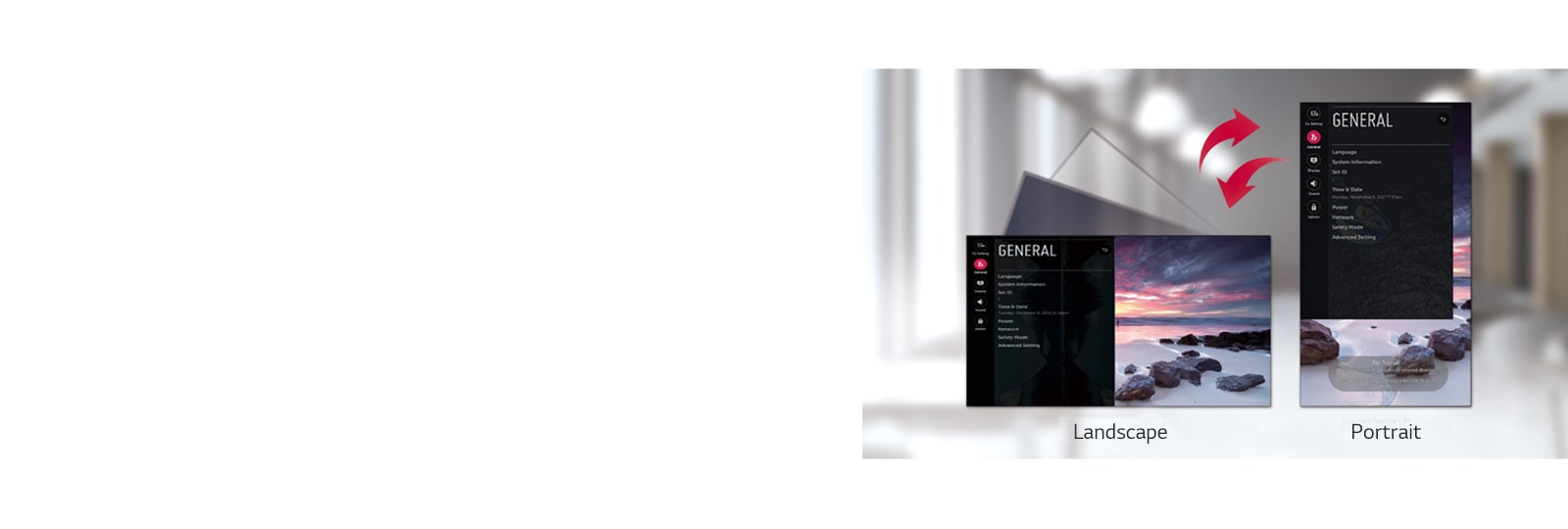

The menu screen consists of both Landscape and Portrait options.

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Conformal Coating

Video wall in various places can’t avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

* Actual images (Signage display) available may differ from the example images shown.

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

The VM5J-H, certified with EMC class B, is installed on the control room wall.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.

The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.

The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.

PANEL

Screen Size55″
Panel TechnologyIPS
Back Light TypeDirect
Aspect Ratio16 : 9
Native Resolution1,920 x 1,080 (FHD)
Refresh Rate60Hz
Brightness(Typ., nit)500
Contrast Ratio1,000:1
Dynamic CR500,000 : 1
Color gamutNTSC 72%
Viewing Angle(H x V)178×178
Color Depth10bit, 1.07Billion colors
Response Time8 ms (G to G)
Surface Treatment(Haze)28%
Life time60,000Hrs (Typ.) / 50,000Hrs (Min.)
Operation Hours (Hours/Day)24/7
Portrait / LandscapeYes / Yes

CONNECTIVITY

InputHDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
OutputDP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)

MECHANICAL SPECIFICATION

Bezel ColorBlack
Bezel WidthB2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R) A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)
Weight(Head)18.8 Kg
Monitor Dimension(W x H x D)1,212.2 × 683.0 × 86.9 mm
HandleYes
VESA™ Standard Mount Interface600 x 400

KEY FEATURE

HWInternal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
SWwebOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion

ENVIRONMENT CONDITIONS

Operation Temperature0 °C to 40 °C
Operation Humidity10 % to 80 %

POWER

Power SupplyAC 100-240V~, 50/60Hz
Power TypeBuilt-In Power

POWER CONSUMPTION

Typ.160 W
Max.190 W
BTU (British Thermal Unit)546 BTU/Hr(Typ.), 648 BTU/Hr(Max)
Smart Enegy Saving90 W
DPM0.5 W
Power off0.5 W

CERTIFICATION

SafetyCB / NRTL
EMCFCC Class “B” / CE / KC
ErPYes (EU Only)

OPS COMPATIBILITY

OPS Type CompatibleYes (Piggyback)

SOFTWARE COMPATIBILITY

SuperSign CMSYes
SuperSign Control / Control+Yes / Yes
SuperSign WBYes
SuperSign Media EditorYes
LG Connected CareYes

LANGUAGE

OSDEnglish, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic

ACCESSORY

BasicRemote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
OptionalOPS Kit (KT-OPSF)
