  • 105 Inch 5K UHD Signage QPD-X

    • Product code: LH105QPD5BGXXV
    • Brand: Samsung
    • Size: 105"
    • Resolution: 5120 x 2160 (5K)
    • Screen brightness: 500 nits

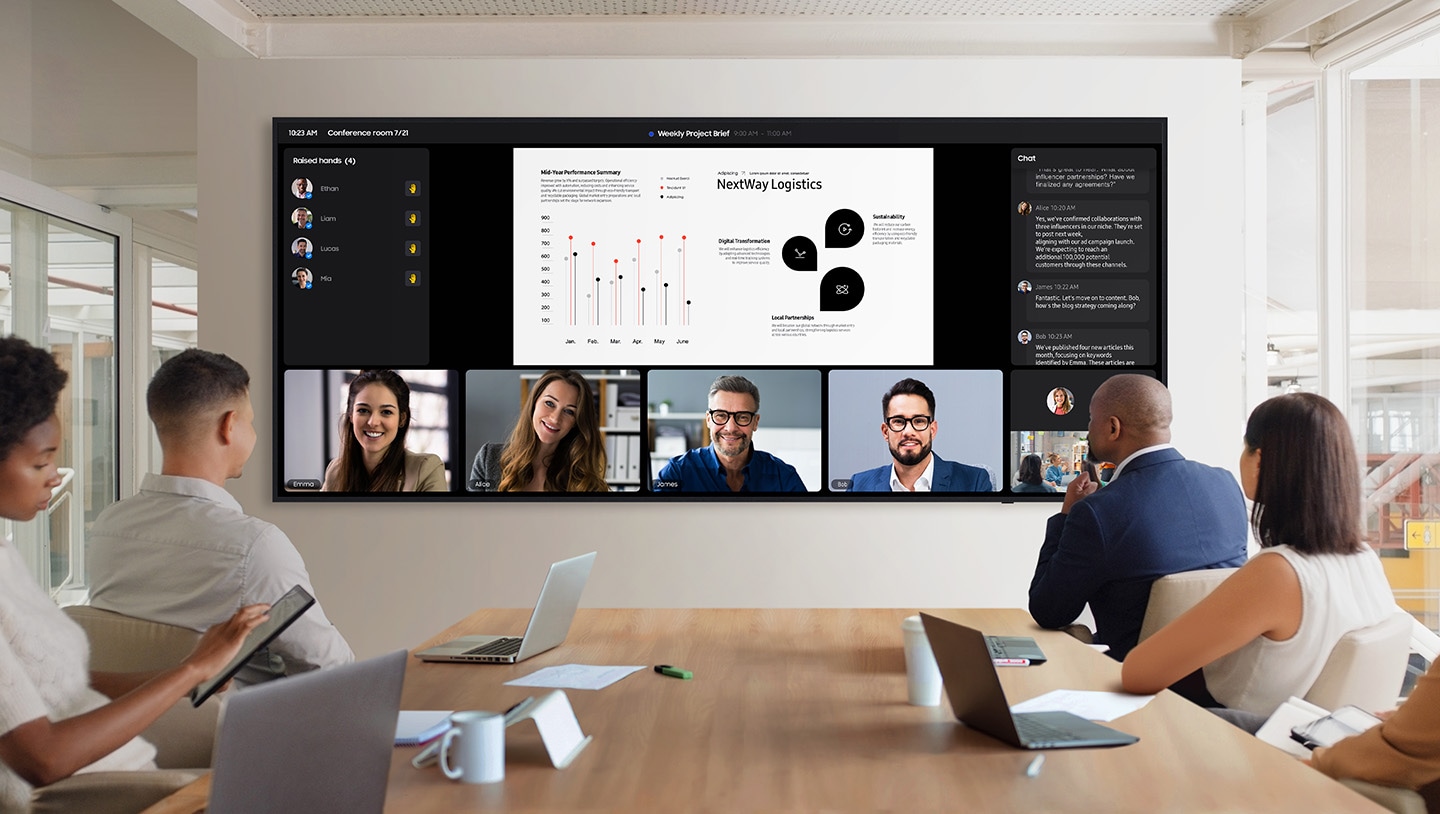

    Scale up your business with a supersized screen

    Take your meetings to the next level with the 105″ supersized display. Its expansive, ultra-wide screen eliminates the need for multiple displays, offering a seamless, uninterrupted view without the distracting borders between screens.

    Scale up your business with a supersized screen

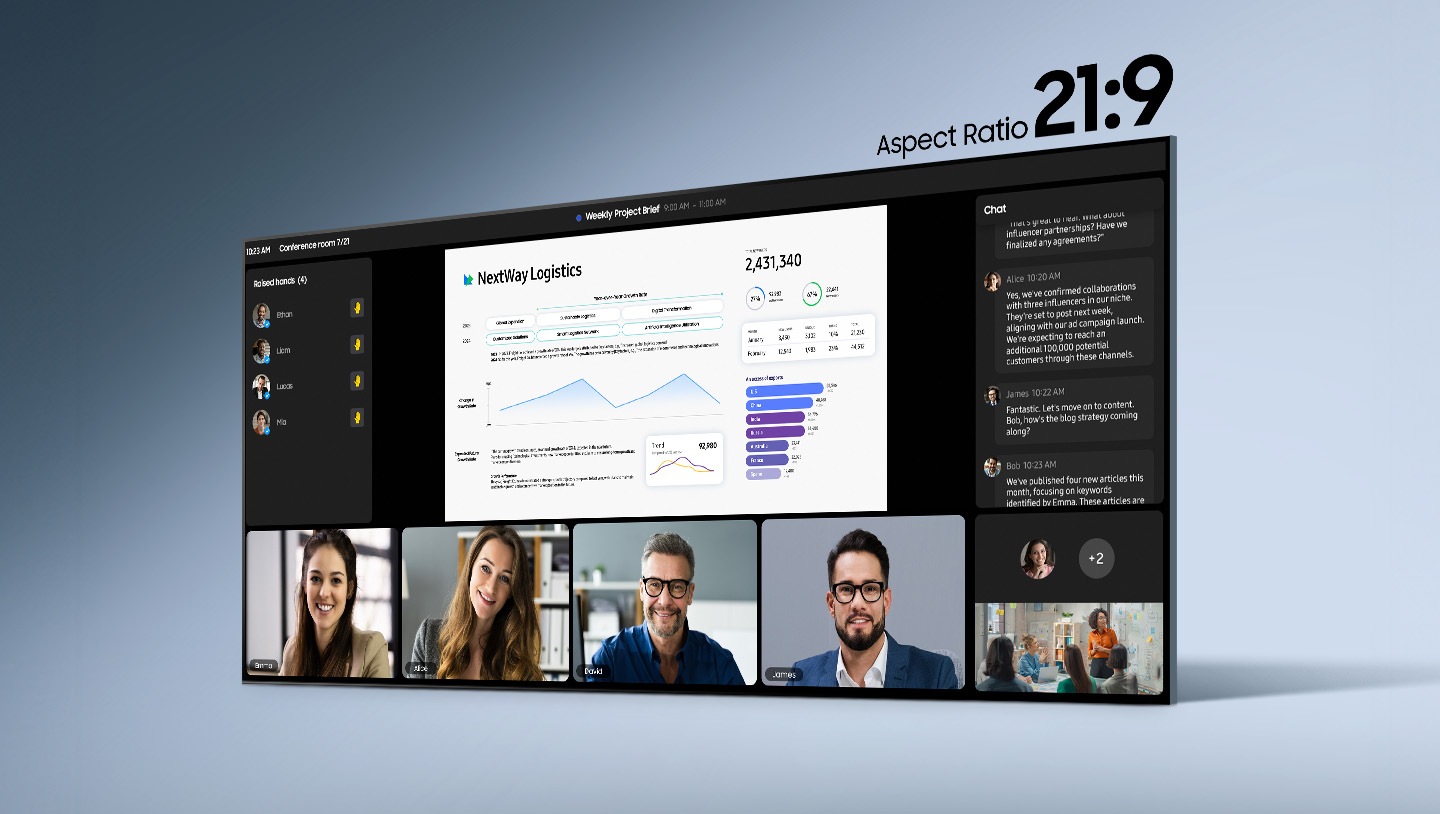

    See it all in one view with expansive display

    21:9 Ultra-Wide Screen

    The QPDX-5K’s 21:9 aspect ratio is designed for today’s modern meeting spaces and optimised for the video conference layout. Whether attendees are in-person or remote, the display ensures equal engagement, providing a truly immersive meeting environment that fosters collaboration.

    See it all in one view with expansive display

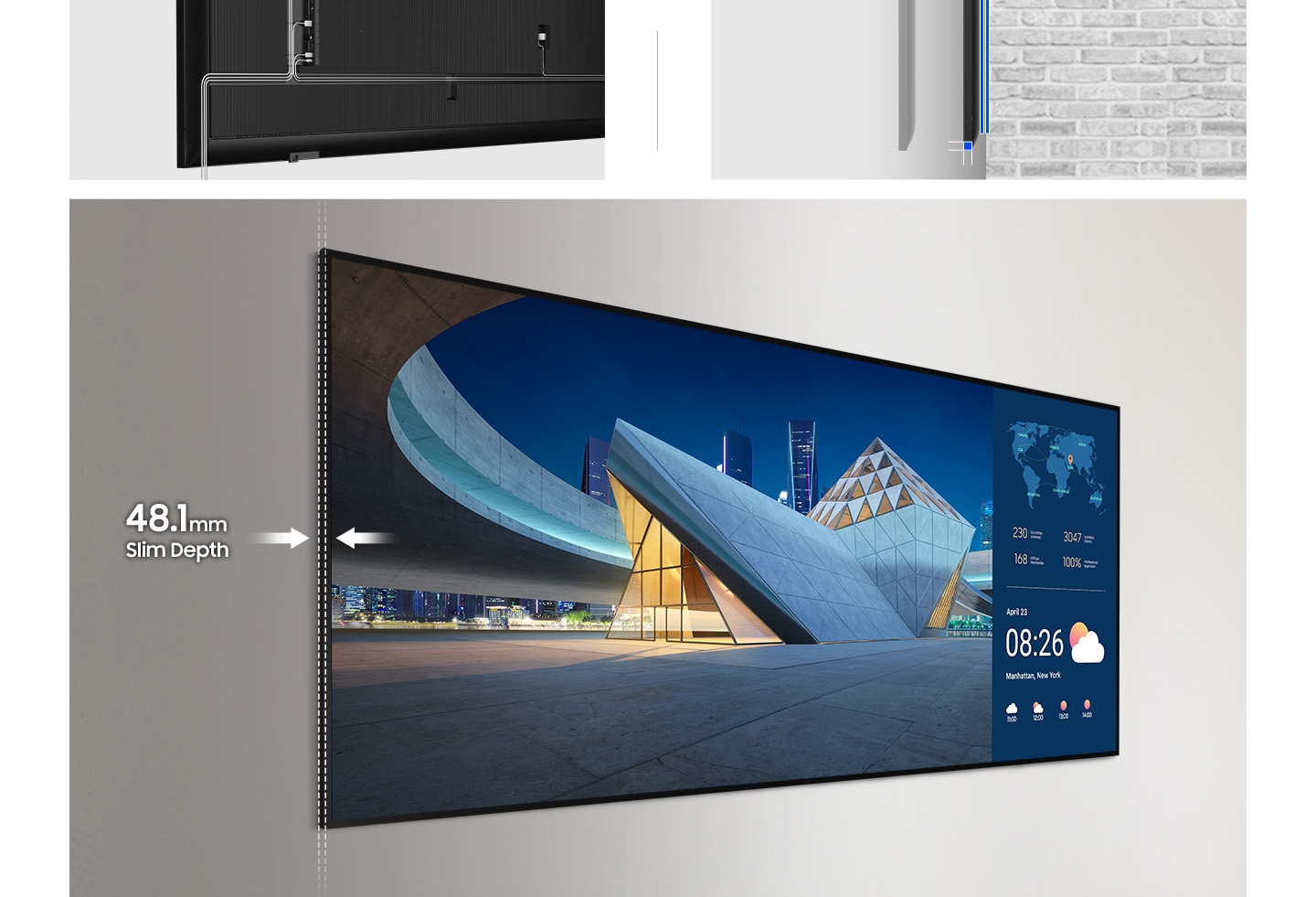

    Maximum impact in minimum space

    Slim Depth

    Elevate your workspace with a sleek design that maximises both performance and space. At just 48.1mm in depth, this 105″ display is the slimmest in its class. Outward-facing ports enable easy, flush wall mounting, making it ideal for meeting rooms that require both elegance and efficiency.

    Maximum impact in minimum space

    Display detailed Information with 5K Resolution1

    5K resolution1

    Experience enhanced collaboration with ultra-clear 5K resolution1, delivering sharper images and finer details. A wide viewing angle ensures every participant enjoys clear, vivid visuals, so no one misses a detail, regardless of their position.

    Display detailed Information with 5K Resolution

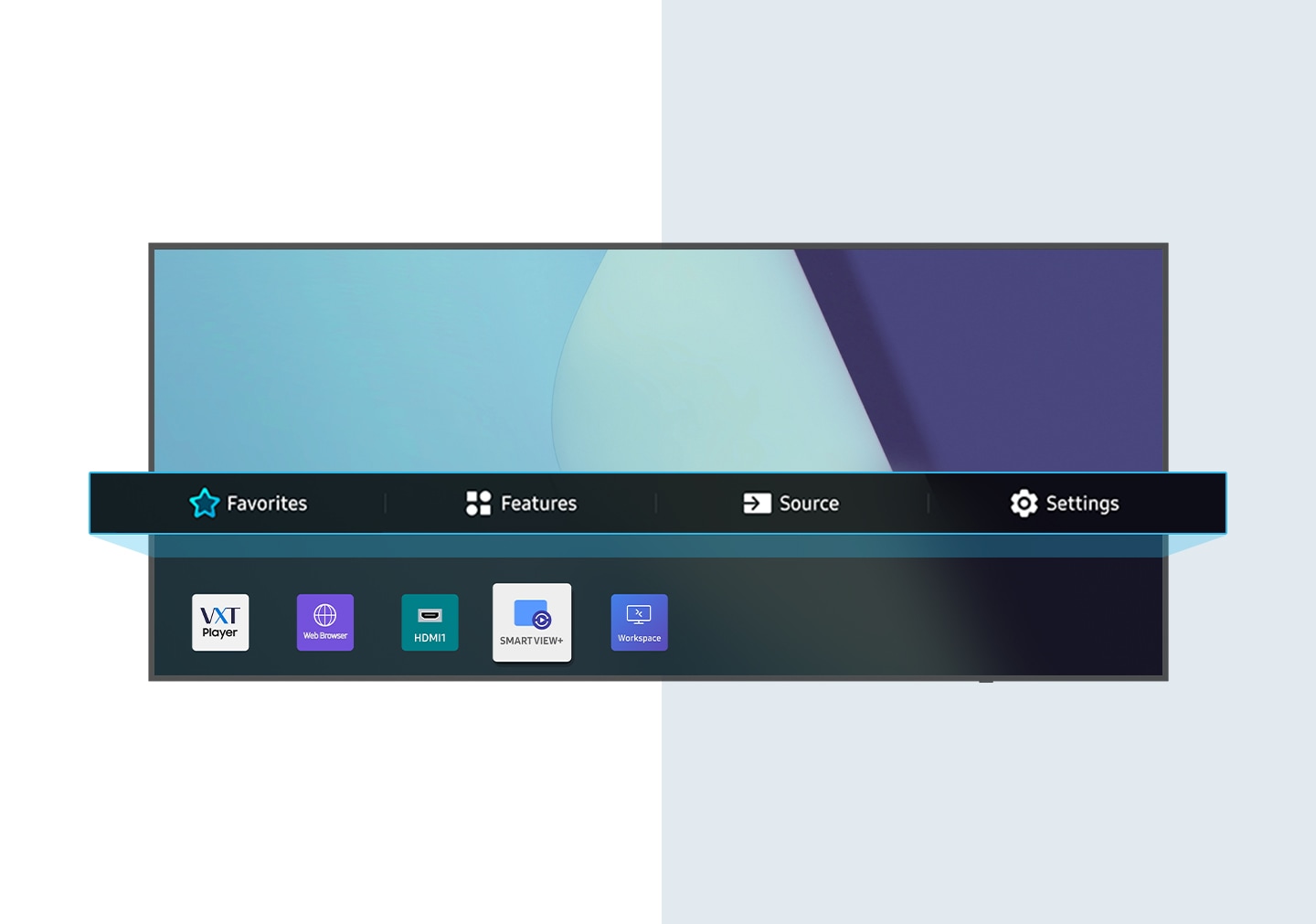

    Connect with convenience

    Home UI

    The upgraded home screen UI boosts usability by displaying popular categories like Favourites, Sources, and Settings all in one place. Users can access frequently used features instantly with a single click through the Favourites folder, ensuring quick and easy navigation.

    Connect with convenience

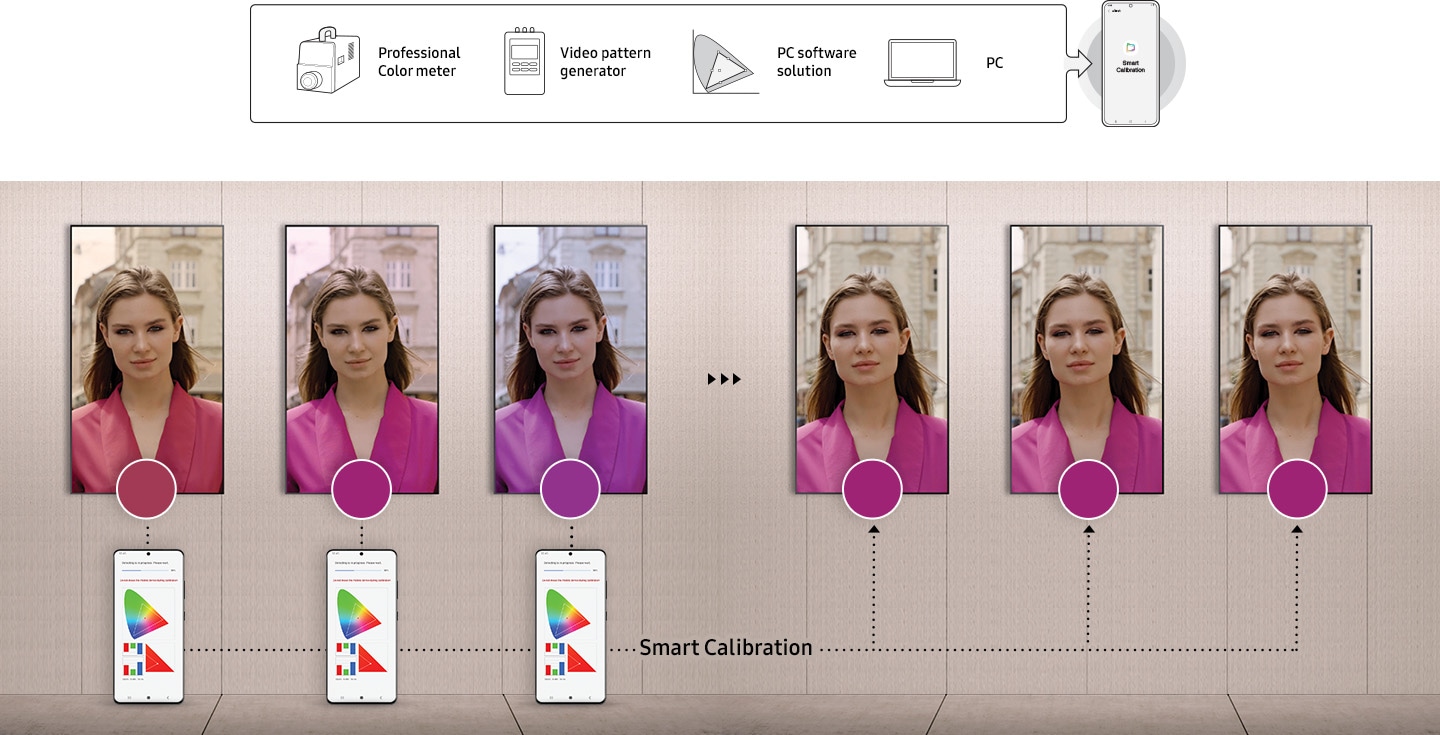

    Simplified calibration between screens with mobile app

    Smart Calibration

    Keep your brand shining consistently across every display, in every location. The Samsung mobile app’s Smart Calibration fine-tunes each screen, bringing your brand logos and visuals to life with precise, vibrant colours that capture attention.

    Simplified calibration between screens with mobile app

    Enhance professional environments with expert tools

    Professional Modes

    Built-in professional modes open up new possibilities for specialised industries. Director Mode minimises post-processing to preserve the director’s original intent, while DICOM Simulation Mode allows medical teams to simulate images like X-rays, meeting DICOM’s full grayscale standards.

    Enhance professional environments with expert tools

    Empower your business with smart control

    SmartThings Pro2

    Samsung SmartThings Pro2 extends beyond the home, seamlessly integrating into business environments. Unused devices in meeting rooms automatically power down, while the system adjusts air conditioning for optimal energy efficiency.

    Empower your business with smart control

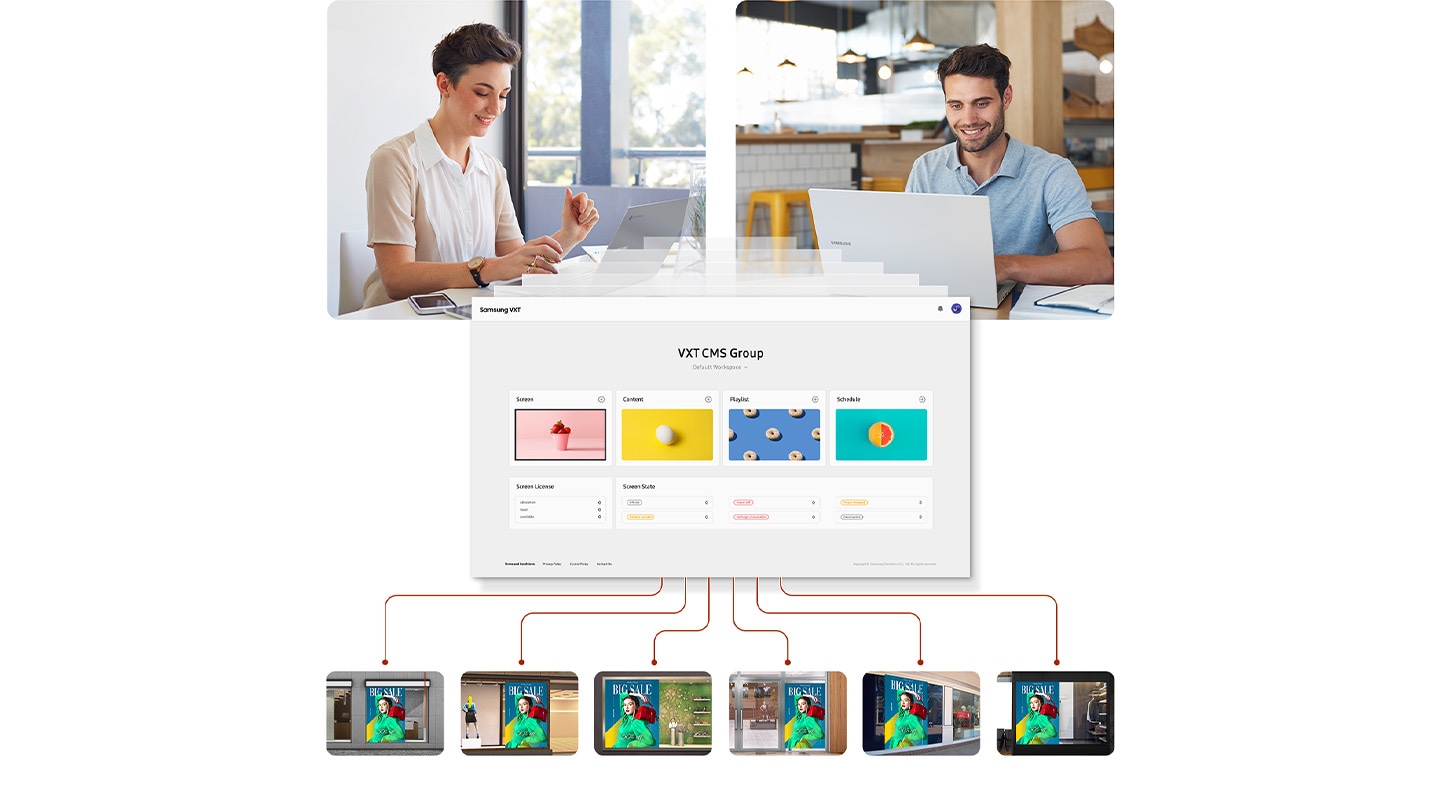

    Change the way to manage your display

    Samsung VXT3

    The cloud-based Samsung VXT3 brings together content management and remote device management capabilities, allowing you to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.

    Change the way to manage your display

    Changes start from small steps

    ENERGY STAR / EPEAT

    The QPDX-5K has received ENERGY STAR 8.0 certification from the Environmental Protection Agency for its energy efficiency, as well as an EPEAT certification in recognition of its eco-conscious efforts, including the use of recycled plastics.

    Changes start from small steps
    Specifications Detail

    Display

    • Diagonal Size105″
    • Panel TypeVA(Direct)
    • Resolution5,120 x 2,160
    • Pixel Pitch (HxV)0.1595 x 0.4785 mm
    • Brightness (Typ)500 nit
    • Contrast Ratio4,000:1
    • Viewing Angle (H/V)178/178
    • Response Time6ms(Typ.)
    • Colour Gamut72%(NTSC)
    • Glass Haze25%
    • H-Scanning Frequency30~81kHz
    • Maximum Pixel Frequency742.5MHz
    • V-Scanning Frequency48~75Hz
    • Contrast Ratio (Dynamic)Mega
    • Operation Time Support24/7

    Connectivity

    • HDMI In3
    • DP In1
    • Version of HDMI2.1
    • Version of DP1.4
    • Version of HDCP2.2
    • USBType-A(2), Type-C(1)
    • IR InYes
    • Audio InNo
    • Audio OutStereo Mini Jack
    • RS232 InYes
    • RS232 OutYes
    • RJ45 InYes
    • WiFiYes
    • Bluetooth®Yes

    Power

    • Power SupplyAC100-240V 50/60Hz
    • Power Consumption (On Mode)550 W
    • Power Consumption (Sleep Mode)0.5 W

    Dimension

    • Set Dimension (WxHxD)2484.3 x 1068.0 x 48.1 mm
    • Package Dimension (WxHxD)2668.0 x 1190.0 x 275.0 mm

    Weight

    • Set Weight55.6 kg
    • Package Weight78.1 kg

    Operation Conditions

    • Temperature0℃~ 40℃
    • Humidity10 ~ 80%, non-condensing

    Mechanical Specification

    • VESA Mount1000 x 400 mm
    • Bezel Width14.8mm (Even)
    • Bezel ColorSlate Black
    • Frame MaterialNon-Glossy(Metal)

    SoC

    • OS VersionTizen 8.0
    • Flash Memory Size16GB

    Certification and Compliance

    • EMCClass A
    • Safety60950-1, 62368-1
